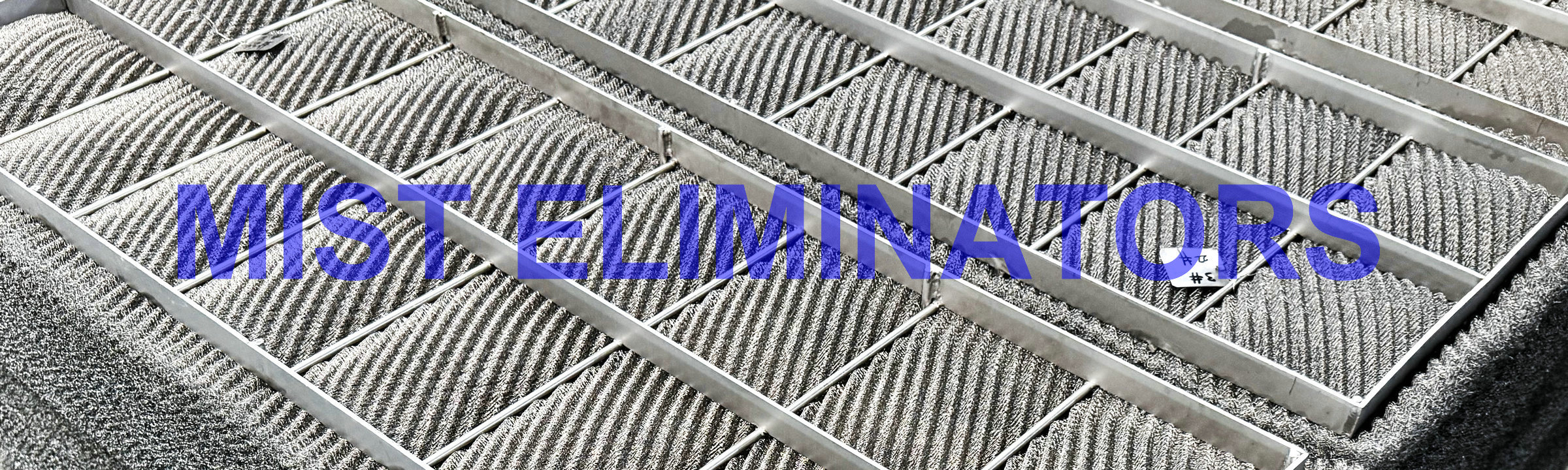

Mist Eliminator & Demister
The Engineered Mist Eliminator & Demister
Mist elimination is a critical process in various industrial operations, particularly in separating liquid droplets from vapor streams to prevent issues such as absorbent losses, product contamination, and equipment damage. Despite its importance, mist eliminators are often treated as commodity items, leading to suboptimal performance. However, engineered mist eliminators can significantly enhance efficiency, reduce operational costs, and extend equipment life.
By leveraging proven technologies and design approaches, Saiptech engineered mist eliminators can deliver significant operational benefits, including reduced absorbent losses, minimized product contamination, and extended equipment life. Investing in the right mist elimination solution can lead to substantial cost savings and improved process reliability.

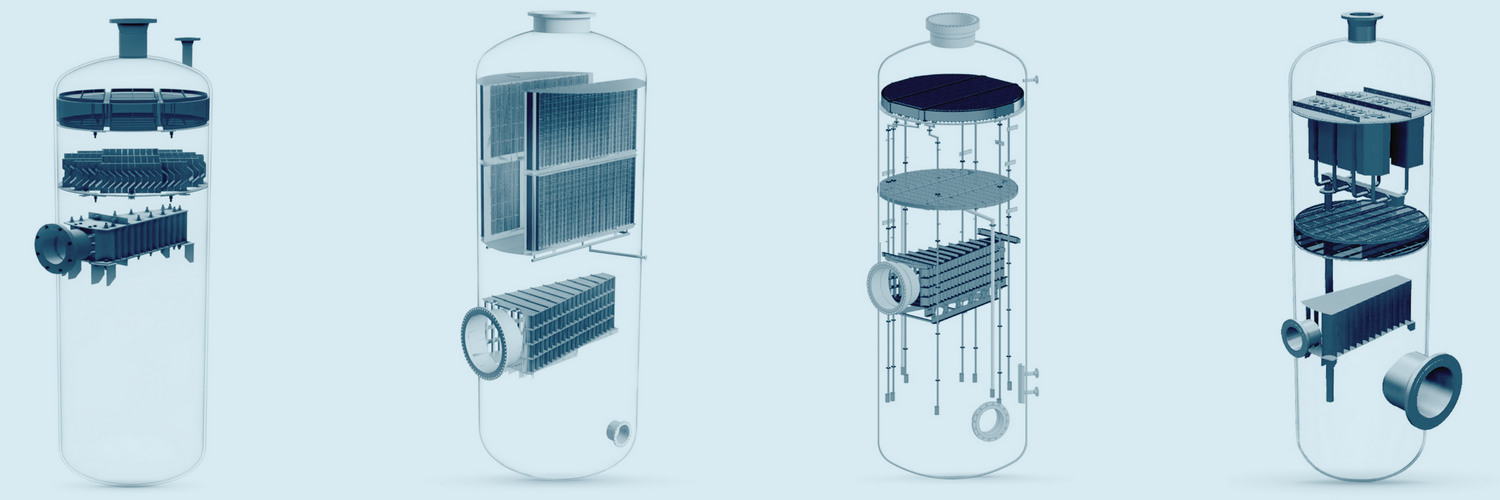

Mist Eliminator Types

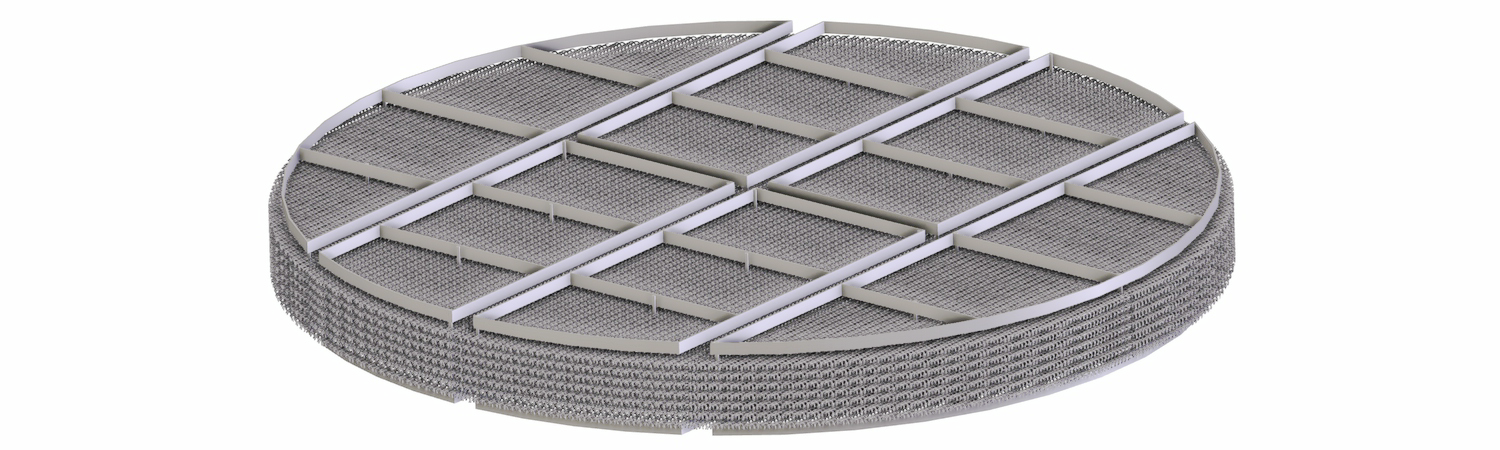

- Mesh Pads: Commonly used for general-purpose mist elimination. They are cost-effective but may have higher pressure drops and limited capacity.
- Vane Packs: Ideal for high-velocity gas streams with large liquid droplets. They offer lower pressure drops and higher capacity compared to mesh pads.
- Fiber Beds: Effective for sub-micron droplet removal, often used in applications requiring high efficiency, such as acid mist elimination.
- Cyclonic Type: Suitable for high particulate loads and large droplet sizes. They use centrifugal force to separate liquids from vapors.
Common Selection Guide
|
Mesh Pad |
Vane Pack |
Fiber Glass |
Cyclone |
|
|
Cost |
1 |
2-3 |
10 |
3-5 |
|
Gas Capacity |
5 |
6-15 |
1 |
15-20 |
|
Liquid Capacity |
5 |
10 |
1 |
10 |
|
Particle Size (micron) |
3-10 |
10-40 |
<0.1 |
7-10 |
|
Pressure Drop, WC |
< 25 mm |
< 10-90 mm |
50-500 mm |
200-240 mm |
|
Solid Handling |
3 |
10 |
1 |
8 |
Typical Size Distribution
|
Mist |
1% wt. |
10% wt. |
50% wt. |
90% wt. |
99% wt. |
|
Primary Absorbing Tower |
0.4 |
0.8 |
1.7 |
10 |
– |
|
Oleum Production |
0.2 |
0.5 |
0.8 |
2.5 |
– |
|
Secondary Absorbing Tower |
0.5 |
1.6 |
2.5 |
5 |
– |
|
Ammonia Scrubber |
0.3 |
0.4 |
0.7 |
2 |
25 |
|
Sulfuric Acid Plants |
0.3 |
– |
– |
– |
26 |
|
Phosphoric Acid Mist/ Acid Plant |
0.5 |
– |
– |
– |
5 |
|
Up-Flow Cooling Tower |
200 |
300 |
400 |
500 |
600 |
|
Packed Cross-Flow Tower |
150 |
200 |
500 |
800 |
1100 |
|
Venturi Scrubber |
40 |
100 |
175 |
300 |
500 |
|
Reverse-Jet Scrubber |
100 |
250 |
500 |
1250 |
2000 |
|
Evaporator |
20 |
50 |
130 |
240 |
300 |
|
Sieve Tray Tower |
250 |
600 |
1100 |
1800 |
2500 |
|
Cooler-Condenser |
0.1 |
5 |
10 |
20 |
35 |
|
2-Fluid Nozzle |
1 |
15 |
35 |
90 |
120 |
|
Single-Fluid Nozzle |
60 |
200 |
500 |
1500 |
2000 |
