Random Packings

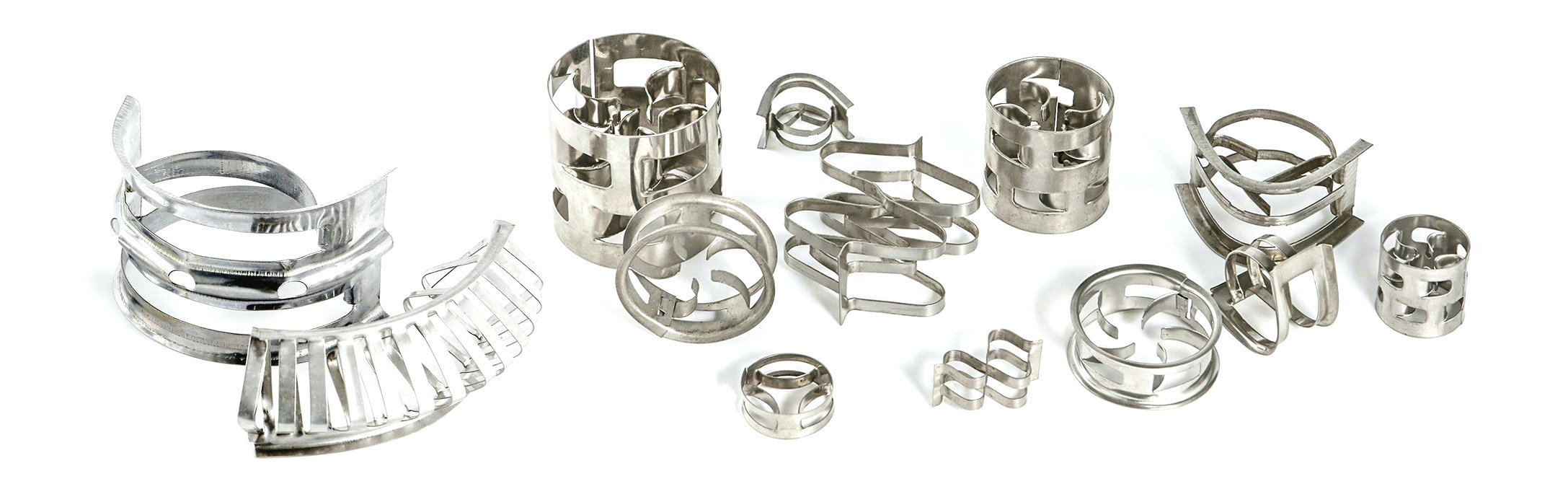

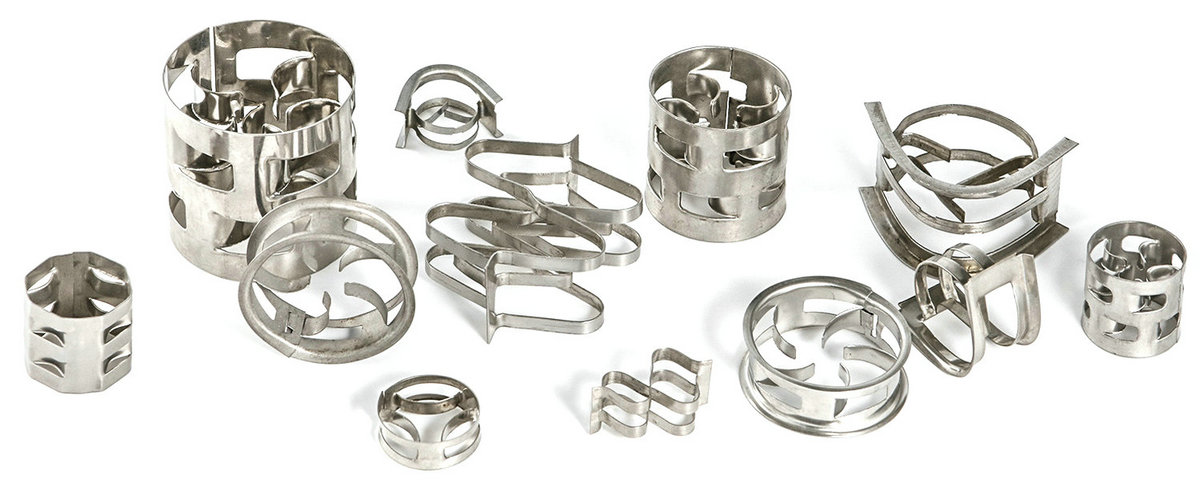

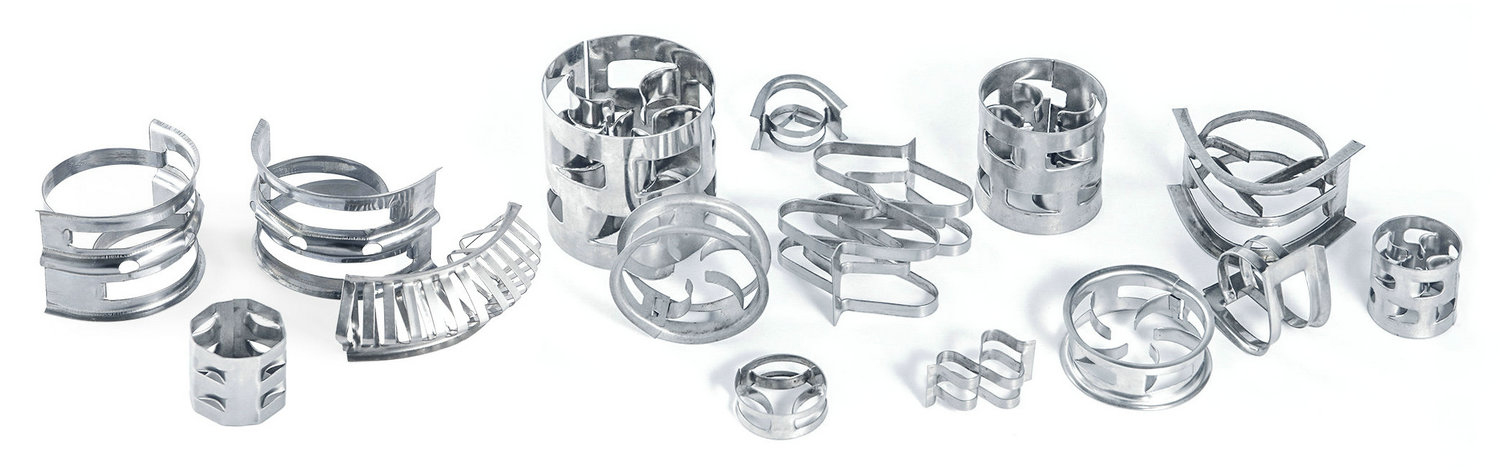

Metal Random Packing
|
Normal Size mm/inch |
Bulk Weight kg/m3 |
Void Fraction % |
Piece Per m3 |
Surface Area m2/m3 |
F Factor m-1 |
|
16---5/8＂ |
502 |
93 |
199800 |
338 |
423 |
|
25---1＂ |
300 |
94 |
52380 |
218 |
255 |
|
38---1.5＂ |
200 |
95 |
15200 |
141 |
165 |
|
50---2＂ |
190 |
96 |
6800 |
107 |
124 |
|
76---3＂ |
160 |
97 |
1900 |
74 |
80 |
|
Type |
Bulk Weight kg/m3 |
Void Fraction % |
Piece Per m3 |
Surface Area m2/m3 |
F Factor m-1 |
|
0 P |
427 |
94 |
531000 |
427 |
55 |
|
1 P |
341 |
96 |
144320 |
230 |
40 |
|
1.5 P |
240 |
97 |
57210 |
198 |
29 |
|
2 P |
200 |
97 |
28520 |
164 |
22 |
|
2.5 P |
195 |
97 |
20500 |
127 |
17 |
|
3 P |
139 |
98 |
9250 |
105 |
14 |
|
4 P |
100 |
98 |
3900 |
90 |
10 |
|
5 P |
82 |
98 |
1200 |
65 |
7 |
|
Type
|
Bulk Weight kg/m3 |
Void Fraction % |
Piece Per m3 |
Surface Area m2/m3 |
F Factor m-1 |
|
# 15 |
272 |
|
324110 |
291 |
|
|
# 25 |
226 |
97.6 |
127180 |
171 |
184 |
|
# 40 |
160 |
97.7 |
51180 |
123 |
132 |
|
# 50 |
143 |
98.2 |
15550 |
79 |
83 |
|
# 60 |
122 |
98 |
8700 |
63 |
71 |
|
# 70 |
106 |
98.5 |
4690 |
55 |
58 |
|
Normal Size mm/inch |
Bulk Weight kg/m3 |
Void Fraction % |
Piece Per m3 |
Surface Area m2/m3 |
F Factor m-1 |
|
#200 |
502 |
93 |
199800 |
338 |
423 |
|
#300 |
300 |
94 |
52380 |
218 |
255 |
|
#400 |
200 |
95 |
15200 |
141 |
165 |
|
#700 |
190 |
96 |
6800 |
107 |
124 |
