Random Packings

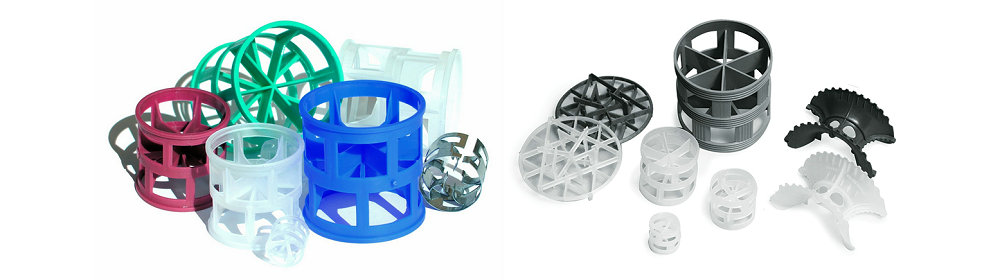

Plastic Random Packing
Plastic packings are used in corrosive applications with low to moderate operating temperature and can offer an economical advantage over metal materials. Where temperatures permit, plastic packings perform better than ceramic packings and are often less expensive than metals, particularly when exotic metals and alloys are required. Consequently, plastic packings are used mainly in absorption, scrubbing, stripping and heat transfer services.
Saiptech offer widest range of sizes and styles of traditional and high performance plastic random packings, with the portoflio including:

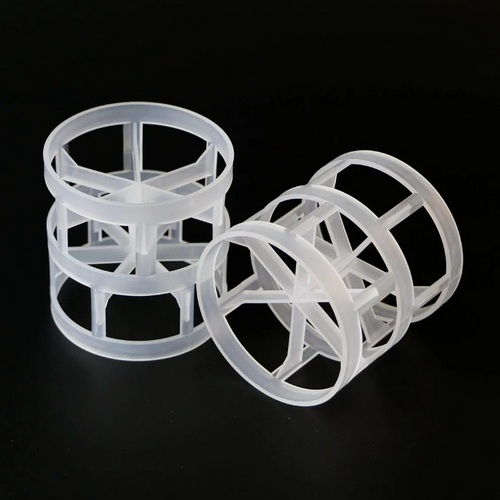

- Pall Ring

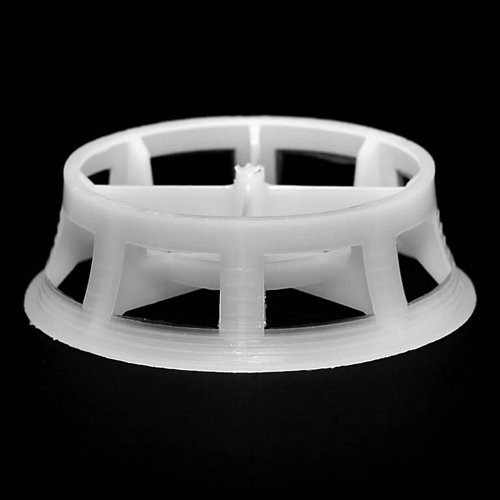

- CMR
- VSP

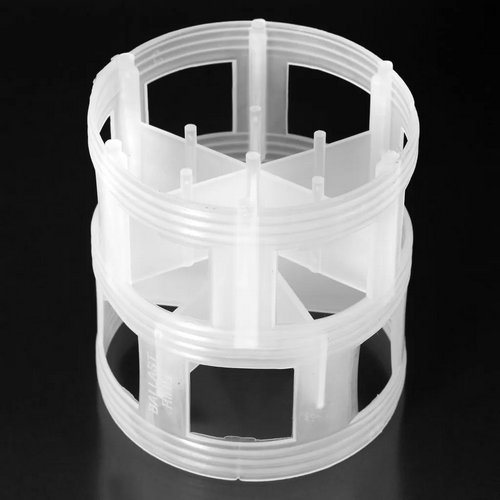

- Hi Flow Ring

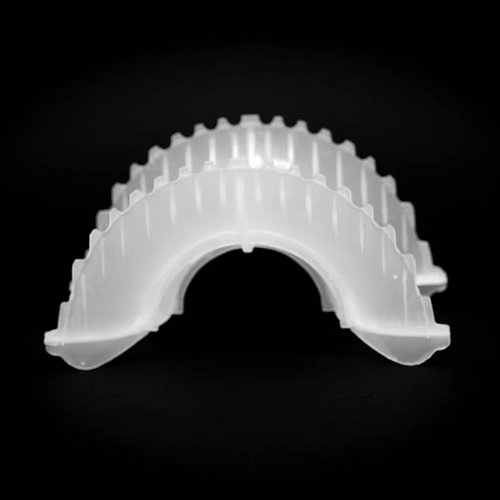

- Intalox Saddle
- Tri Pack
- Lanpac
- Tellerette Ring
- Ralu Ring
- Raschig Supper Ring

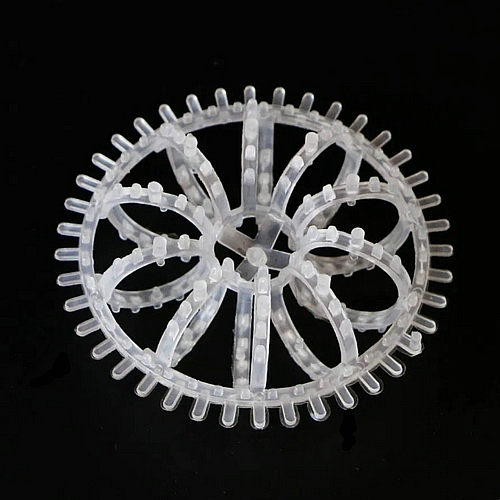

- Snow Flake
- Bio Pack
Absorbers
- CO2 absorption
- SO2, HCl and HF absorption or stripping
- Chlorine absorption in water or caustic
- Chlorine dioxide absorption
- Chlorine drying
- Hydrogen sulfide and mercaptan removal
- Air pollution control scrubbers
- Fume scrubbing
- Odor control
- VOC removal
Degassing
- Decarbonation
- Deaeration
Water treatment
- Waste water treatment
- Drinking water preparation
- Fish farming
Heat Transfer
- Humidification
- Dehumidification
Plastic packings are often preferred because of their lightweight construction and resistance to breakage. Further, the availability of numerous types of plastic resins provides the designer with a broad range of chemical and thermal resistant materials. our plastic packings are made in a wide variety of thermoplastic materials. Most of the packings are available in the materials listed in the table below. Other plastics are available by special request.
|
Type of Plastic |
Max Recommended Chemical Resistance Temperature |
Specific Gravity |
|
|
PP |
220 F |
104℃ |
0.91 |
|
FRPP |
260 F |
127℃ |
0.97 |
|
PVC |
150 F |
66℃ |
1.46 |
|
CPVC |
185 F |
85℃ |
1.55 |
|
PVDF |
290 F |
143℃ |
1.77 |
|
ETFE |
300 F |
149℃ |
1.7 |
|
PFA |
482 F |
250℃ |
2.2 |
