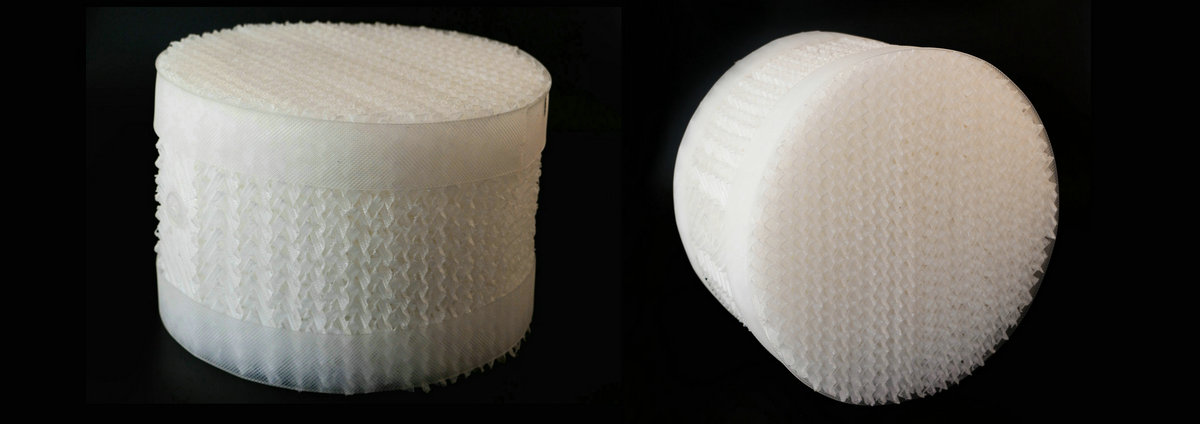

Plastic Structured Packing

Structured packing in plastic for chemically corrosive applications.

Plastic structured packings provide the same combination of high efficiency, high capacity and low pressure drop as their metal counterparts. The variety of plastics available makes this product suitable for some of the most demanding corrosive applications. The wetting characteristics of plastic combined with any unique attributes of the specific material of construction may cause the actual HETP to vary significantly.

Type	Surface Area (m²/m³)	Void Fraction (%)	Bulk Density (kg/m³)
100X/Y	100	92	260
125X/Y	125	90	320
160X/Y	160	85	384
250X/Y	250	80	450
350X/Y	350	78	490
450X/Y	450	72	552
500X/Y	500	74	600
550X/Y	550	73	620
700X/Y	700	72	650

Typical Applications

Air separation plant direct contact cooler
Flue gas cooler
Seawater scrubber
HCl absorber
SO2 absorber
Cl2/ClO2 scrubber
Deaerators

Materials of Construction

Polypropylene
Glass filled polypropylene
CPVC
PVDF
ECTFE
Glass filled ECTFE
PFA
Glass filled PFA
